Part3:Install and Configure View Composer



In this part, we will install and configure View Composer software and create an ODBC connection for the view composer database.

NOTE: I have created a new server for the View Composer component, however you can choose to install and configure the View Composer component in a windows vCenter server.

We execute the file “VMware-viewcomposer-7.0.0-3613429.exe” on the View Composer server to start the installation.

horizon_composer_install1

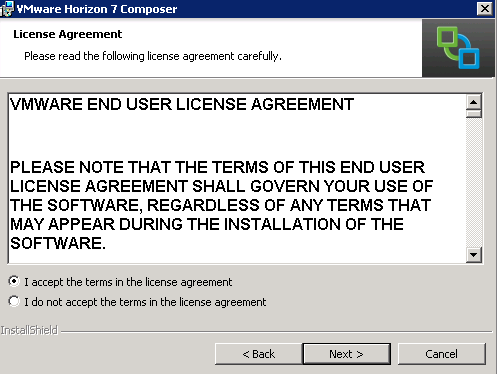

horizon_composer_install2

view_composer_install3

view_composer_install4

In the above screenshot, I gave the view composer DSN name in the Data Source Name portion (view_composer) and entered its credentials which I used for the view composer database (which we completed in Part 1)

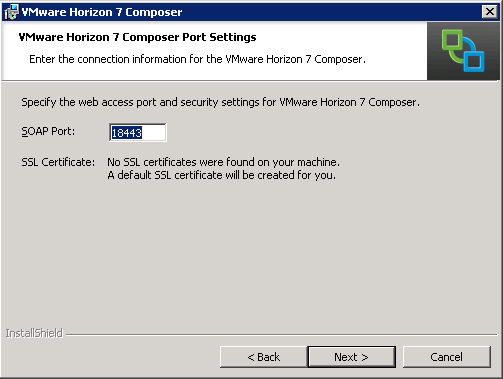

view_composer_install5

view_composer_install6

view_composer_install_progress

view_composer_install_complete

once you click on the Finish button, it will ask you to reboot the system, click on yes to reboot the server or no to reboot it later.

view_composer_install_after_complete_restart

With this, Installing and Configuring View Composer parts are complete.

Setting up ODBC Connection for View Composer Database

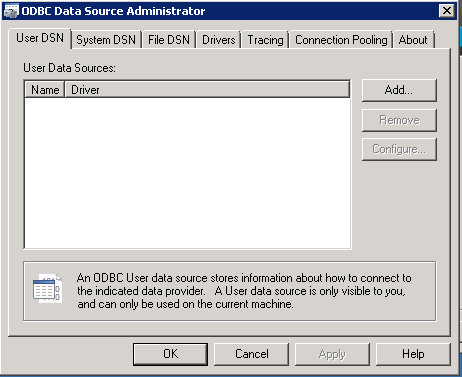

settingup_odbc_dsn_view-composer1

NOTE: View Composer DSN is in 64 Bit ODBC Data Source Administrator

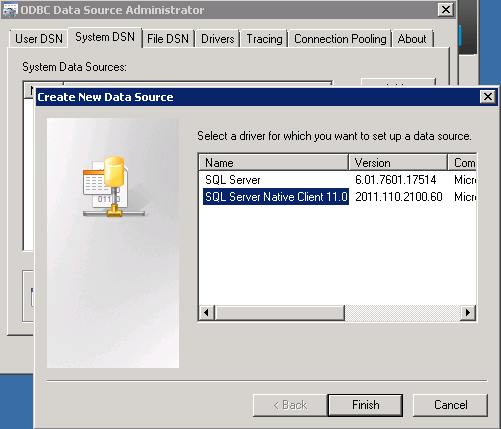

settingup_odbc_dsn_view-composer2

NOTE: You will need to install SQL Native Client(sqlncli.exe) on the server where you are adding the ODBC Connection for View Composer server. The native client version depends on your SQL Server. In my case, since it is SQL Server 2012, the native client version is 11.0

settingup_odbc_dsn_view-composer3

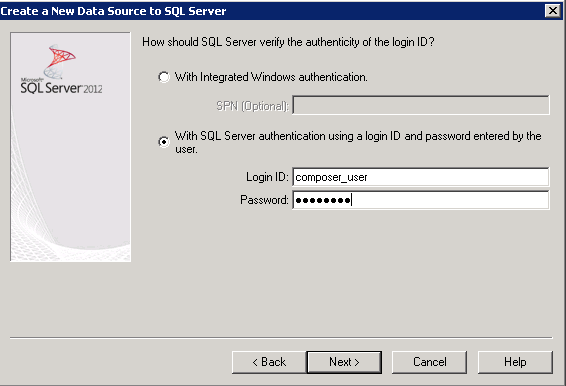

settingup_odbc_dsn_view-composer4

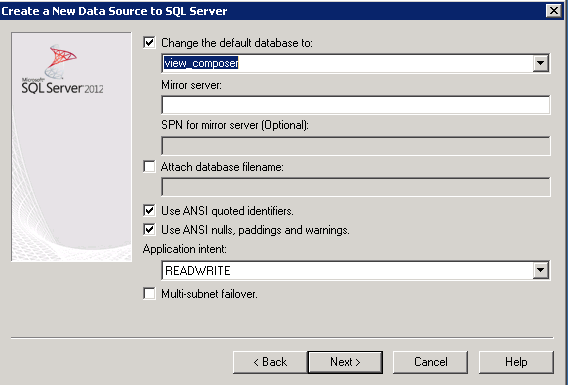

settingup_odbc_dsn_view-composer5

settingup_odbc_dsn_view-composer6

Once we click Finish, it will ask us to Test the connection to the SQL database and it should be successful.

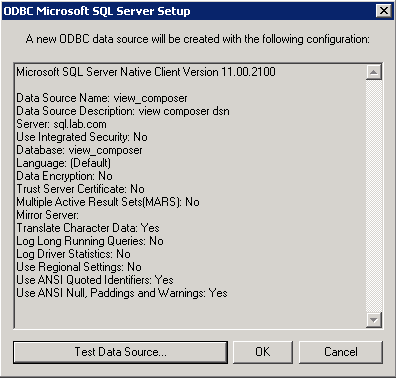

testingdatasource_odbc_connection1

testingdatasource_odbc_connection2

This completes the part where we install and configure View Composer.

Next part will be Configuring vCenter server, View Composer and Events Database in Horizon View Administrator Console.
